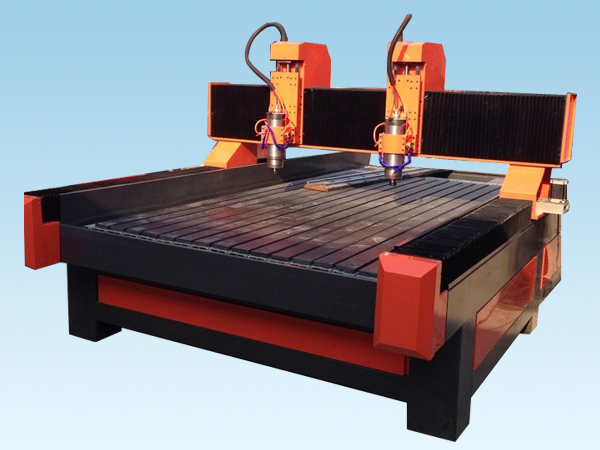

stone cnc router with two heads
Stone working machine with double heads
Parameter
| Model | SM-2030S(with 2 spindle heads)stone cnc router |
| Machine body | Heavy duty T-slot |
| Working area(XYZ axis) | 2000*3000*200mm |
| table | Aluminum table +15mmABS board |
| X Y Z rail | PMI/HIWIN linear square guide rail |
| X Y transmission | Rack and pinion |
| Z transmission | High precision ball screw |
| Spindle | 5.5kw*2 water cooling spindle |
| Spindle speed | 24000rpm |
| Inverter | Fuling inverter |
| Motor | Stepper motor |
| Driver | Stepper driver |
| Transformer | Yes |
| Lubrication | Yes |
| Max. speed | 30m/min |
| Max. working speed | 20m/min |
| Voltage | AC 380V 50HZ three phase |
| Collets | ER25 3.175-14mm |
| Repeat reposition accuracy | 0.025mm |
| Max. cutting thickness | <=20mm |
| Cover | X Y Z cover |
| Command | G code |
| Software | Artcam/ Ucancam |
| Control system | Nc Studio |
| Remark | Optional driving mode: |
| Servo motor and driver | |
| Optional control system: | |
| DSP,original NC studio controlling system |
Application materials
SM-2030S Stone CNC router is good at engraving letter and designs
on all kinds of stone material, for example,marble,granite,black stone,jade
stone,sandstone,slab,ceramic, etc.
