Characteristics
1. High efficiency in electrical / optical conversion, wind cooling ;
2. Small in size, with high beam output quality, high reliability;
3.The marking speed is 3~12 times of first and second generation of laser markers;
4.No consumable ,10 years service life of the laser source,energy saving;
5.Low power consumption(800W).

Applicable materials and industries
1.used for fields with higher requirements in depth, smoothness and precision;
2.used to engrave metallic and non-metallic materials, for example, stainless steel decorating parts for handsets, clocks, watches, moulds, ICs, handset buttons, bitmap marking etc

Technical specifications

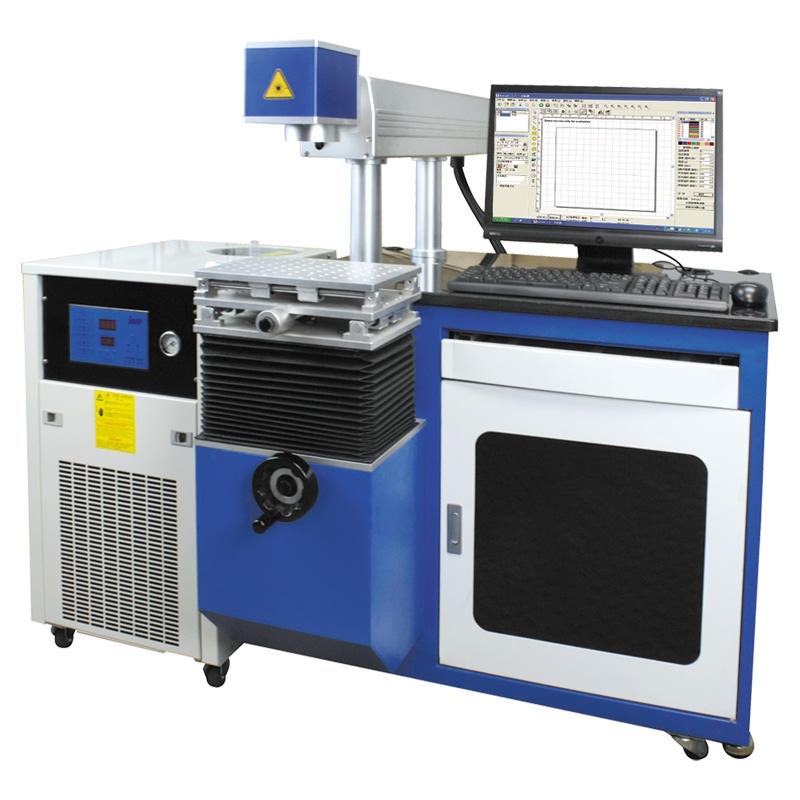

Model    SM-50w
Laser Power   50W
Laser wavelength  1064nm
Repeating Frequency    20-100KHZ
Beam Quality     M<2
Marking Range     100mm x 100mm(Optional)
Marking Depth  0.1-4mm(depend on material)
Marking Speed ≤7000mm/s
Min.line Width 0.01mm
Min.Character 0.15mm
Repeatability Accuracy ±0.002
Power Supply 220V±10% / 50-60Hz
Power Consumption 800W
Dimensional 1110mm x 860mm x 1520mm
Weight ≤100kg
Operating System Win98/Win2000/WinXP/Win 7
Cooling Way Built-in air cooling
Control Interface Standard USB
File Format All character styles from character store of OS

Laser Type Pulse

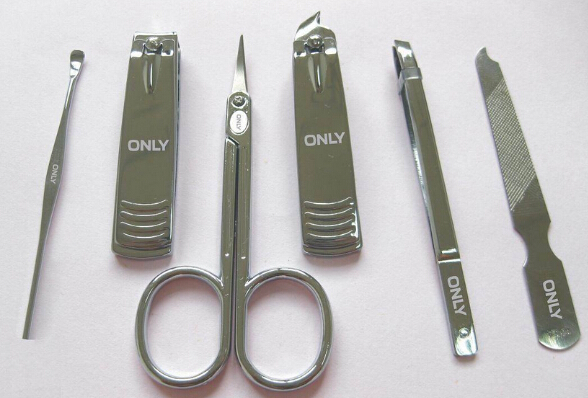

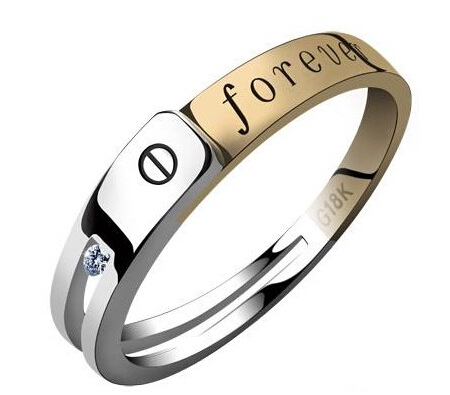

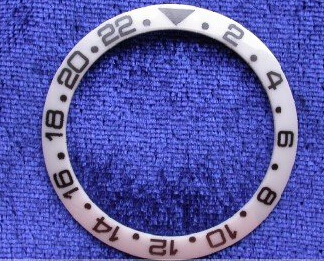

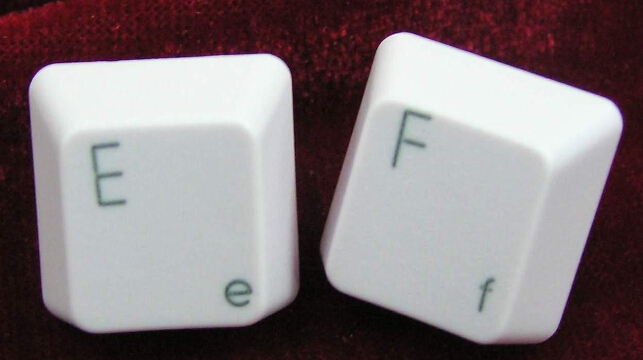

Sampls:
