Model NO.

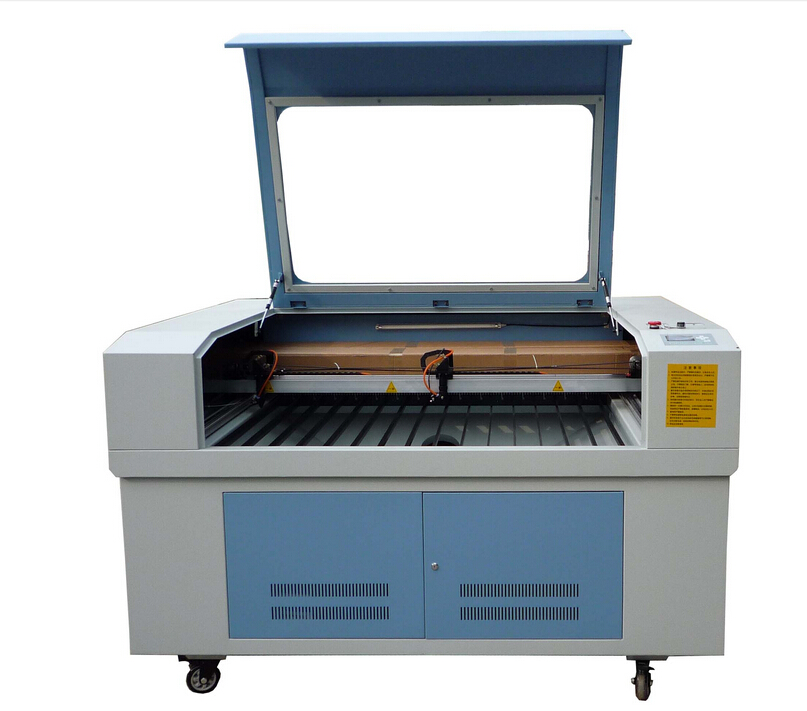

SM-9060 Laser Cutting Machine

Cutting Area

900 x 600mm

Laser Power

60W/80w/100w/150w for optional

Laser Type

CO2 Sealed Laser Tube,Water-cooled,10.6um

Engraving Speed

0-60000mm/min

Laser Output

1-100% Software Setting

Reposition Accuracy

≤0.01mm

Power Supply

220V/50HZ , 110V/60HZ

Operating Temperature

0 - 45°C

Operating Humidity

5 - 95%

Min. Shaping Character

English 1.0 x 1.0mm

Graphic Format Supported

PLT, DXF, BMP, AI, DST

Software Supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Driving System

Stepper Motor and driver

Cooling Mode

Water-cooling and Protection System

Equipment Dimensions

1450x1100x1070mm

Net Weight/Gross Weight

230KGS/300KGS

Shipping Dimensions

1500 x 1200 x 1300mm

Optional Spare Parts

Up-down Worktable, Rotary Attachment, Red Light Pointer

Recommended Spare Parts

Laser Tube and Lens
