Your position: Home>Products>Advertising cnc machineContentAdvertising cnc machine

mini cnc router

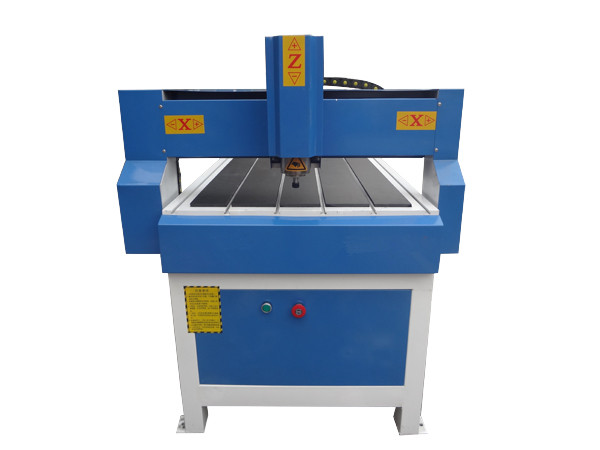

Mini cnc router SM-6090

Technical parameters

Model

SM-6090 cnc router

X,Y,Z Working Area

600x900x110mm

Table Size

600X900mm

Z feed Height

110mm (200mm /300mm heighten Gantry optional)

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

X,Y,Z repositioning Positioning Accuracy

±0.01mm

Table Surface

T-slot Extrusions

Frame

Whole cast structure

X, Y, Z Structure

TBI round rails and ball screw

Max. power Consumption

1.5Kw

Max. Rapid Travel Rate

1000mm/min

Max. Working Speed

5000mm/min

Spindle Power Motor

1.5 / 2.2 / 3.0 Kw water-cooling (option: air-cooling)

Spindle Speed

6000-24000RPM

Drive Motors

Stepper system (option: Servo)

Working Voltage

AC220V/50/60Hz (380V option)

Command Language

G code

Operating System:

Ncstudio (options: DSP /Mach3 PC Software)

X,Y Resolution

<0.01mm

Software Compatibility

Type3 software ( option: Wentai software, Artcam software)

Running Environment

Temperature: 0-45°C Relative humidity: 30%-75%



Applicable Industries and materials



Advertising industry: acrylic, double color boards, PVC, ABS, aluminum composite panels, kind of sign, chest signs, texts mould, trademark materials.

Arty and crafts: Artificial stone, engrave kind of texts , patterns on souvenirs.

Mold processing: Building models, physical model, hot stamping mould, trace injection mould, shoes mold, badges, embossed mold, biscuit, chocolate candy mold.
